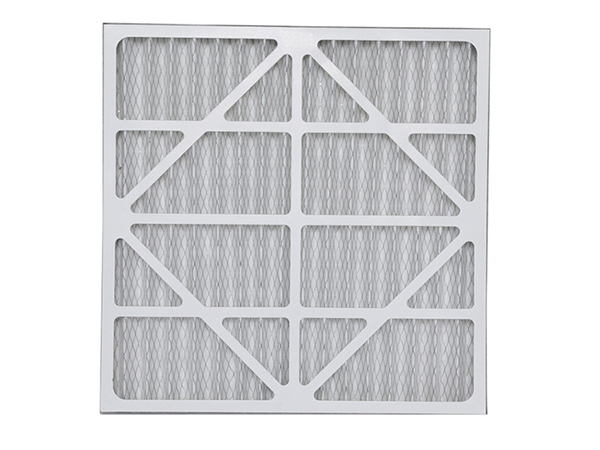

褶紙式紙框初級濾網
V-Pleating Pre-filter with paper frame
外框由防潮耐濕紙板製成，正常的操作環境下不會變形、破裂、扭曲，外框前後以對角線支撐設計固定濾材，折景濾網擁有至大開放過濾面積，供氣流通過助長集塵能力，結構堅固過濾效果穩定，使用壽命延長，濾材與外框緊密的黏合外框
防止任何氣漏產生。
As the perimeter frame of the filter is made of moisture-proof cardboard, there are no any deformations, breakages, or distortions happened consequently. Moreover, the diagonal paper member supporting design of both sides of the frame makes it is possible to hold the filter media more fixedly indeed. In addition, the media V-pleating design makes the free filtration area of the filter being maximized. It not only can provide better filtration efficiency but makes the filter construction being more sturdily and stably so as to ensure a longer life time as well. Besides of that, filter media has been sealed to frame firmly so as to prevent it from air leakage eventually.
測試方法 Testing Method | 比色法(in NBS) Dot Spot Efficiency | 比重法(in AFI) Arrestance |
25-30% | 90-92% | |
ASHRAE Standard 52.1-1992 (Equal to EN 779) | ||
楔形狀摺疊使進氣面積 (A) 等於出氣面積 (B)，
這將使末端損失減至至低達到降低壓損效果。
The radial wedge creates an air exit area(B) equal to the air entering
area(A),which minimizes end losses and reduces pressure drop.
非楔形狀摺疊進氣面積 (C) 不等於出氣面積 (D)，
導致高壓損及濾材使用不均勻。
Non-radial wedge pleats have unequal air exit (D) and air entering
(C) areas,wihich cause higher resistance and uneven usage of media.
材質·使用條件
材質 | 濾材 | 合成纖維/玻璃纖維 |
外框 | 鋁合金/紙/不銹鋼 | |
使用條件 | 連續使用至高溫度（℃） | 60 |
使用瞬間至高溫度（%RH） | 100（不潔露） |
標準規格
寬*高*深 W*H*D (inch) | 寬*高*深 W*H*D (mm) | 風量 Airflow（CMH） | 初阻力（Pa） | 建議終阻力（Pa） |
12*24*1 | 290*594*20 | 930 | 85 | 135 |
20*20*1 | 496*496*20 | 1330 | ||
20*24*1 | 493*594*20 | 1600 | ||
20*25*1 | 493*623*20 | 1660 | ||
24*24*1 | 594*594*2 | 1900 | ||
12*24*2 | 290*593*45 | 930 | 55 | 85 |
20*20*2 | 496*496*45 | 1330 | ||
20*24*2 | 493*594*45 | 1600 | ||
20*25*2 | 496*623*45 | 1660 | ||
24*24*2 | 594*594*45 | 1900 | ||
12*24*4 | 290*593*92 | 930 | 45 | 70 |
24*24*4 | 593*593*92 | 1900 | ||
*可根據要求定制其它尺寸。 | ||||
